Natural gas compression station for microturbines

VGE series

After many years of experience in the construction, commissioning and maintenance of natural gas compressor and in cooperation with some distributors, Adicomp has developed a new high performance and standardized series to feed turbines and gas engines.

HOW IT WORKS

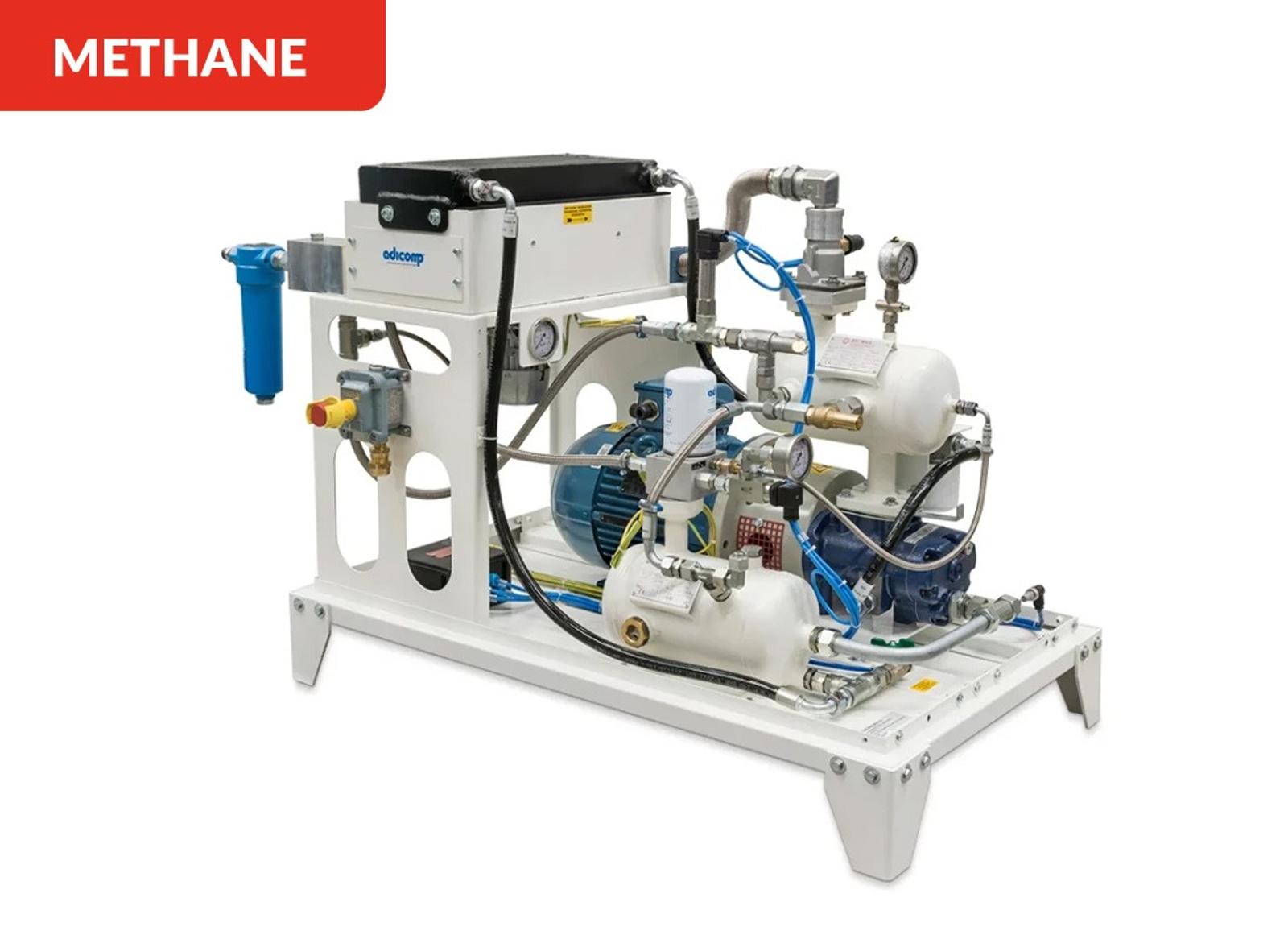

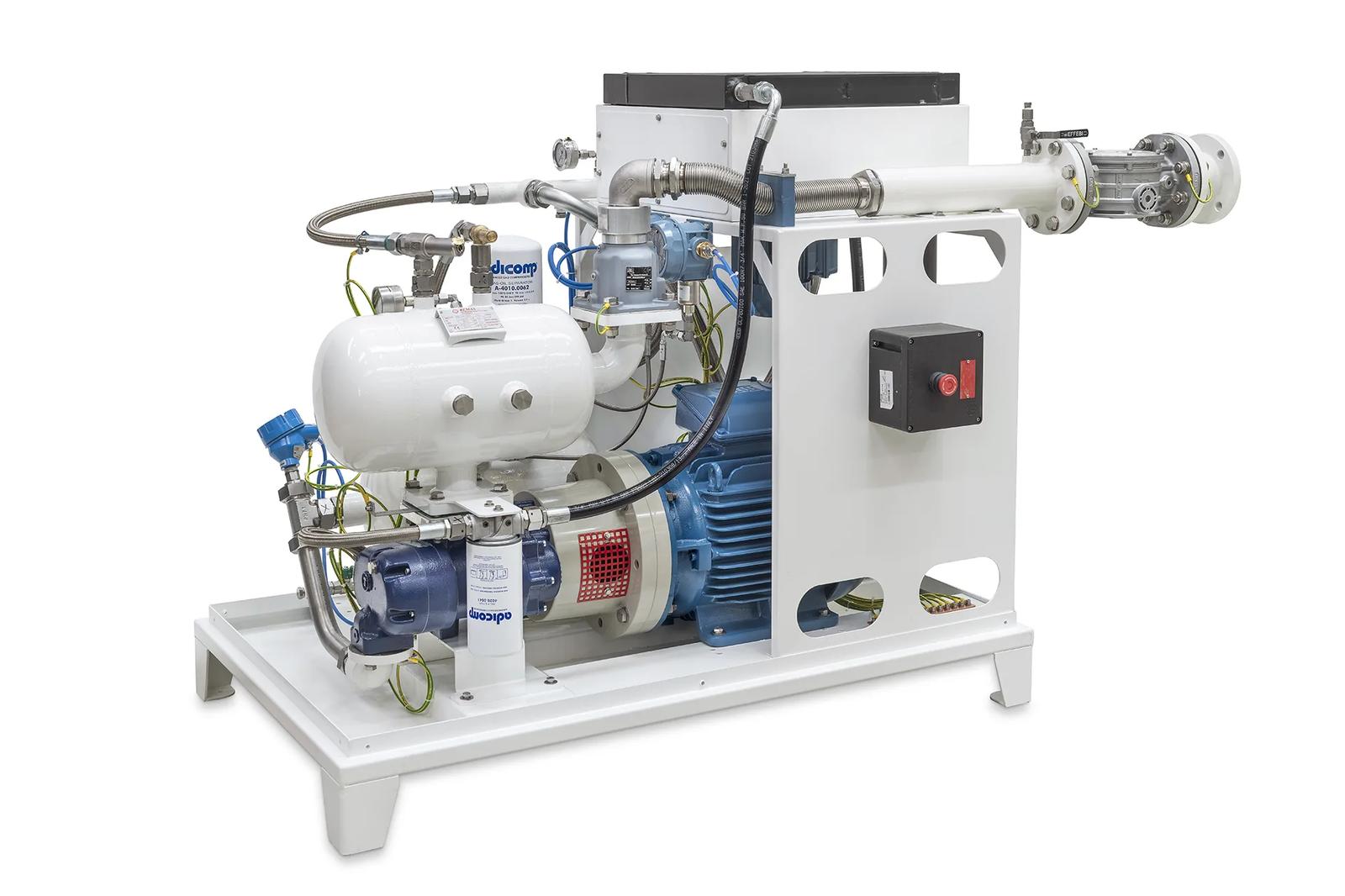

Our natural gas compression and treatment stations are designed onto an easy handling skid, composed of an oil-injected rotary screw block, directly coupled to an electric motor. At the suction side, the dry gas is sucked, filtered and then it flows to the rotors through a control valve. During the gas compression process, oil is injected inside the rotary screw chamber to perform three main functions: lubrication, sealing and heat absorption. After the compression stage, most of the oil is removed thanks to specific filters and then the gas flows through an air cooler to lower its temperature. A mechanical by-pass valve recirculates the exceeding gas to modulate the capacity from the value achieved at minimum speed of the electric motor, down to 0%. When the system stops, the circuit is depressurized by conducting the gas into a specific expansion buffer or bleeding it out to the atmosphere.

OPERATING PRESSURE
5.5/6 bar(g)

FREE GAS DELIVERY
up to 309 Nm3/h

ADSORBED POWER
up to 37 kW

REFERENCES

Model HVG 90

France

Screw compressor for syngas, with a content of 40% of hydrogen, destined for the French market. Designed for classified Atex Zone 2 for indoor installation. It is water cooled completed with electropneumatic by-pass valve and controlled by PLC.
View more

Model BVG132/VG75

Latvia

Two open frame screw compressors for biogas upgrading. They are water cooled and equipped with heat recovery, electro-pneumatic by-pass system, fine filtration and controlled by PLC and one open frame  screw compressor for biomethane grid injection, It is water cooled and equipped with fine filtration, electro-pneumatic by-pass system and controlled by PLC. All compressors are designed for classified Atex Zone 2 for indoor installation (+3/+40 °C).
View more

Model BVG 90

USA

Screw compressor for biogas upgrading located in USA. Designed in compliance with ASME and UL standards for outdoor installation, It is air cooled and completed with heat recovery, temperature control, electropneumatic by-pass valve and controlled by PLC.
View more

Model UVG 650

Italy

Screw compressor for biogas upgrading installed inside a container (40') destined for the Italian market. Designed for classified Atex Zone 2 for outdoor installation. It is water cooled and completed with heat recovery, temperature control, electropneumatic by-pass valve and controlled by PLC.
View more

Model UVG 550

USA

Two screw compressors for biogas upgrading installed inside a container (45’) destinated for US market. Designed in compliance with US standards, suitable for outdoor installation, water-cooled, completed with electro-pneumatic by-pass system, temperature control, fine filtration and PLC-controlled with control cabinet integrated in the container.
View more

Model UVG 200

France

Screw biogas compressor for upgrading located in France. Designed for classified Atex Zone 2 for outdoor installation. It is air cooled and completed with heat recovery, temperature control, electropneumatic by-pass valve and controlled by PLC.
View more

Model UVG 200

Italy

Screw biogas compressor for upgrading located in Italy. Designed for classified Atex Zone 2 for outdoor installation. It is air cooled and completed with heat recovery, temperature control, electropneumatic by-pass valve and controlled by PLC. It is equipped with silencers for reducing the noise level to 65 dB@ 10m.
View more

Model UVG 250

Germany

Screw biogas compressor for upgrading located in Germany. Designed for classified Atex Zone 2 for outdoor installation. It is,completed with heat recovery, temperature control, fully electrical by-pass system and controlled by PLC. It is equipped with silencers for reducing the noise level to 75 dB@ 1m.
View more

Model VG 75

France

Screw compressor for biomethane located in France. Designed for classified Atex Zone 2 for outdoor installation. Water-cooled, completed with temperature control, fine filtration and controlled by PLC. It is equipped with silencers for reducing the noise level to 75 dB@ 1m.
View more

Model UVG 200

France

Screw biogas compressor for upgrading located in France. Designed for classified Atex Zone 2 for outdoor installation. It is completed with heat recovery, temperature control, fully electrical by-pass system and controlled by PLC.
View more
