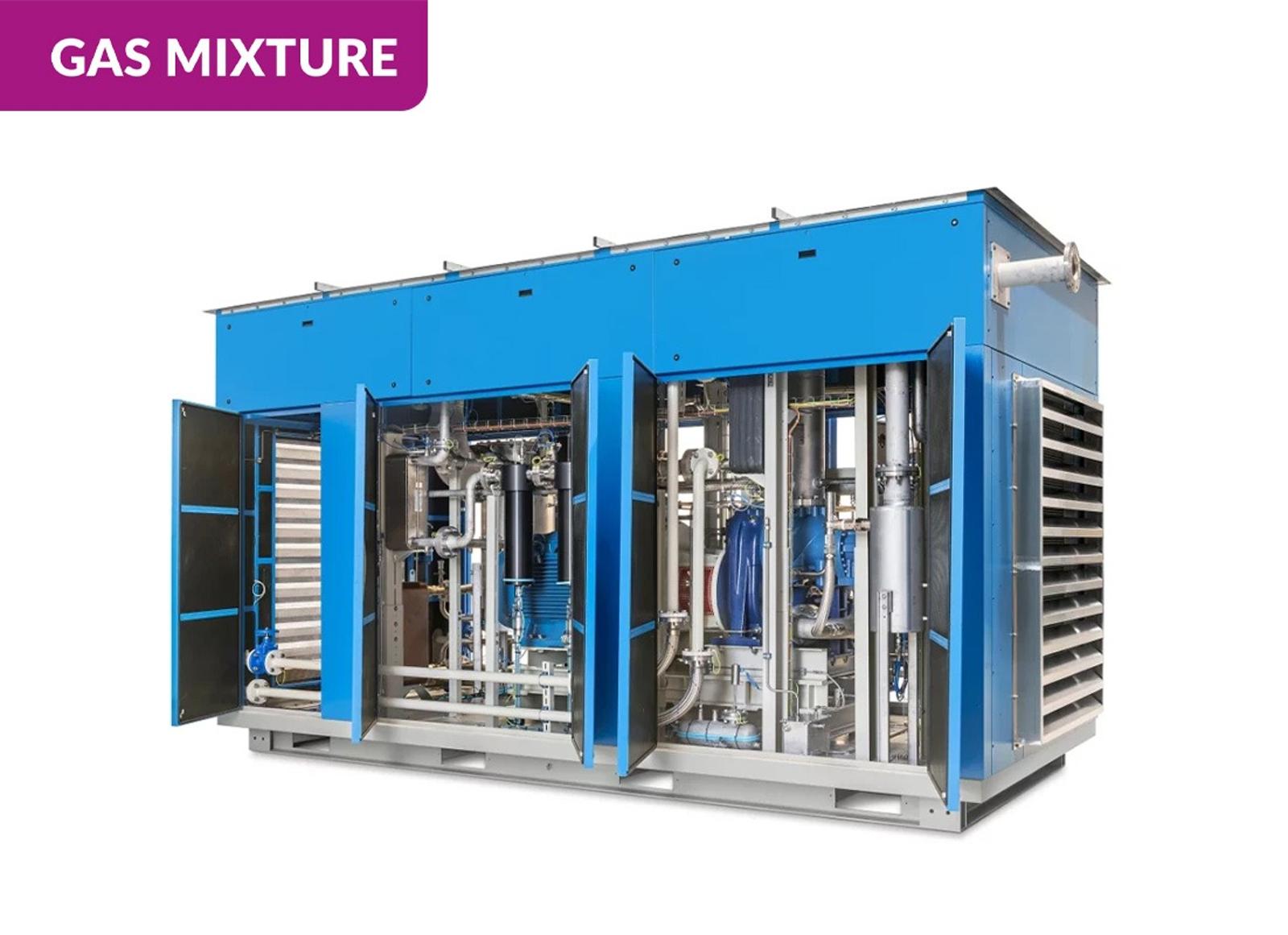

SSG series

These wet or dry gas compression and treatment stations are designed into an easy handling skid composed of a two stage oil-injected rotary gas screw block, directly coupled to an electric motor through a flexible coupling inverter controlled.

Adicomp is pleased to announce that it has developed and produced, together with its parent company Termomeccanica, a two-stage oil-injected screw compressor package that utilises the HTS-23 screw block and which, when operating between 15 and 25 bar(g) discharge pressure, has 10-12% higher efficiency than the equivalent single-stage model.

These features result in two important advantages:

  • An incredible energy saving resulting on much less running costs (savings of 50,000-60,000 euro/year for a 200 kW model).
  • When biomethane injection into a grid operating at pressures of 23-24 bar(g) is required, there is no need to install a final gas booster, resulting in large savings in capital costs

HOW IT WORKS

The wet gas is sucked through a suction filter acting also as a water separator with automatic condensate drain system, then the gas passes through a suction valve.
All the components in contact with the gas are made in stainless steel or duly protected, due to the presence of H2S, CO2 and other aggressive contaminants into the gas.
During the gas compression process, the oil is injected inside the two stage rotary screw chamber to perform three main functions: lubrication, sealing and heat absorption, cooler and it is treated before leaving the package.
Working in a close circuit with a gas/oil receiver, oil is pressurized to flow trough an oil cooler, then filtered before being injected again into the screw compression chamber. The gas flows through the minimum pressure /no-return valve into a cooler and it is treated before leaving the package.

OPERATING PRESSURE
up to 25 bar(g)

FREE GAS DELIVERY
up to 1.500 Nm3/h

ADSORBED POWER
up to 250 kW

REFERENCES

Model UVG 250

Germany

Screw biogas compressor for upgrading located in Germany. Designed for classified Atex Zone 2 for outdoor installation. It is,completed with heat recovery, temperature control, fully electrical by-pass system and controlled by PLC. It is equipped with silencers for reducing the noise level to 75 dB@ 1m.
View more

Model VG 75

France

Screw compressor for biomethane located in France. Designed for classified Atex Zone 2 for outdoor installation. Water-cooled, completed with temperature control, fine filtration and controlled by PLC. It is equipped with silencers for reducing the noise level to 75 dB@ 1m.
View more

Model UVG 200

France

Screw biogas compressor for upgrading located in France. Designed for classified Atex Zone 2 for outdoor installation. It is completed with heat recovery, temperature control, fully electrical by-pass system and controlled by PLC.
View more

Model UVG200/UVG110

Italy

Two screw biogas compressors for upgrading located in Italy. Designed for classified Atex Zone 2 for outdoor installation, air cooled and completed with heat recovery and fine filtration. They’re equipped with silencers for reducing the noise level to 65 dB@10m.
View more

Model UVG 250

Italy

Screw biogas compressor for upgrading located in Italy. Designed for classified Atex Zone 2 for outdoor installation. Air-cooled,completed with heat recovery, temperature control, fine filtration and controlled by PLC. It is equipped with silencers for reducing the noise level to 65 dB@10m.
View more

Model UVG 132

France

Screw biogas compressor for upgrading located in France. Designed for classified Atex Zone 2 for outdoor installation. It is completed with heat recovery, temperature control, fine filtration, fully electrical by-pass system and controlled by PLC.
View more

Model BVG 160

USA

Screw biogas compressor for upgrading located in USA. Designed in compliance with north american standards, suitable for outdoor installation, air-cooled, completed with electro-pneumatic by-pass system, temperature control, fine filtration and controlled by PLC.
View more

Model ADI115-30

France

Double-stage reciprocating compressor for biomethane grid injection installed in France. Designed for classified Atex Zone 2 for outdoor installation, controlled by PLC and it is equipped with fully electrical by-pass system.
View more

Model ADI70-18.5

France

Double-stage reciprocating compressor for biomethane grid injection installed in France. Designed for classified Atex Zone 2 for outdoor installation. it is equipped with fully electrical by-pass system and controlled by PLC.
View more

Model UVG 160

France

Screw biogas compressor for upgrading located in France. Designed for classified Atex Zone 2 for outdoor installation. It is air-cooled,completed with heat recovery, temperature control, bleed valve for depressurization and controlled by PLC.
View more
