co2 compressor CVG series

CVG series

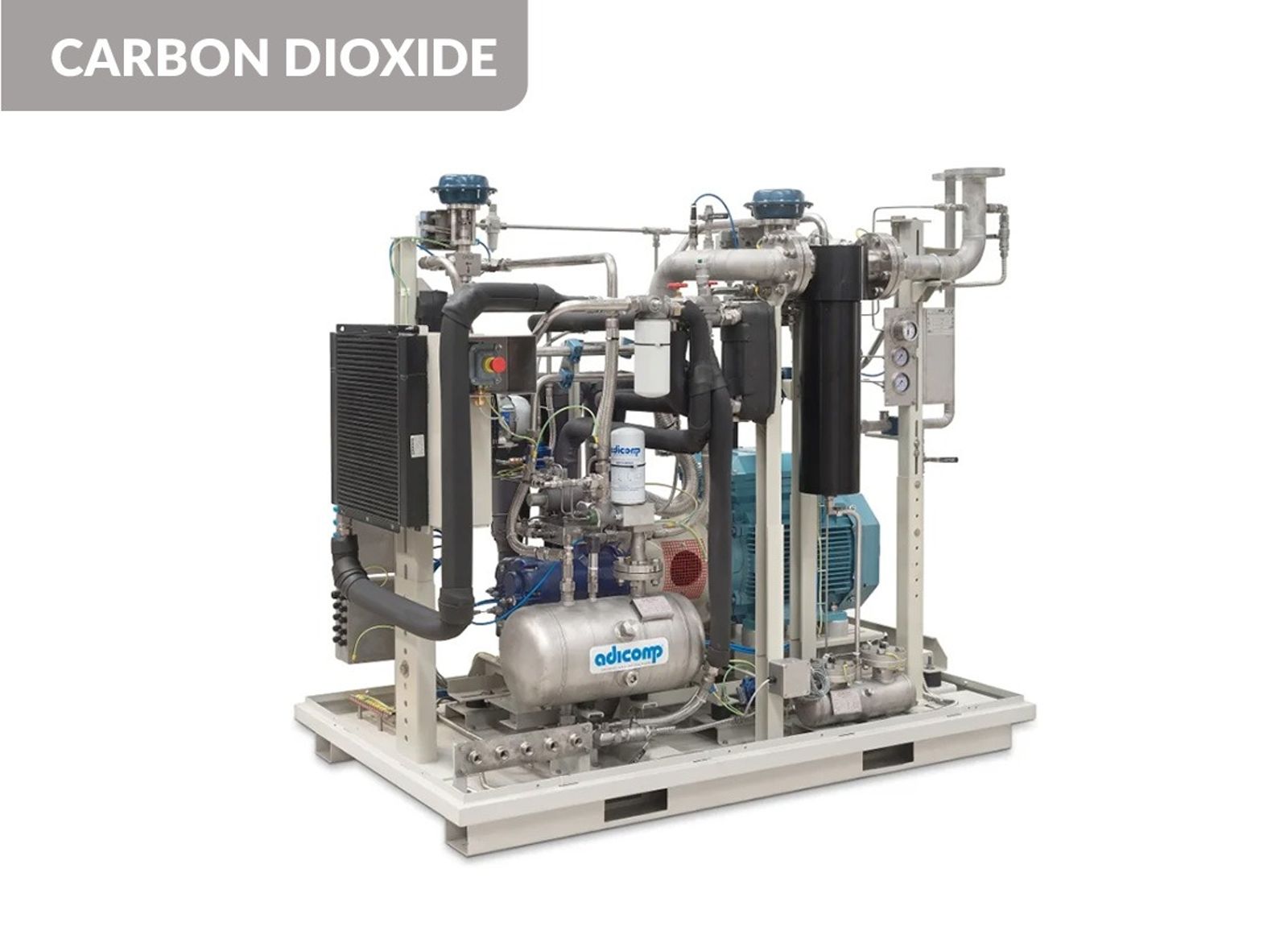

The CO2 compression and treatment stations are designed to be Plug & Play in order to maximize and facilitate the installation at the customer’s site. The core of the machine consists of an oil injected screw block, directly coupled to an electric motor by a flexible or magnetic coupling and controlled by an inverter from the HMI panel.
• CVG: available operating pressures from 4.0 bar(g) to 25.0 bar(g).

HOW IT WORKS

The CO2 compression and treatment stations are designed on an easy-to-handle skid or enclosure. They can be oil-injected rotary screw or multistage reciprocating pump, directly coupled or belt-driven by an inverter-controlled electric motor. All the components in contact with the gas are made of stainless steel or duly protected, due to the presence of CO2 and also possible aggressive contaminants into the gas.
In the Earth’s atmosphere, carbon dioxide is found at an average concentration of 413 ppm/m3 . Due to the increasing consumption of fossil fuels over the past two centuries, this concentration has steadily increased, aggravating the greenhouse effect.
Can CO2 be integrated in a circular economy? To date, there are numerous CO2 applications: it can be stored and/or reused for other applications such as agriculture, food, chemical industries, materials and laser cutting, combustion, and dry ice. Adicomp supplies high-tech compressors, for gas recirculation in upgrading, for the methanization processes, liquefaction or food applications that require the use of food grade oil. Adicomp provides a complete ‘plug & play’ package that compresses and delivers carbon dioxide with characteristics and qualities that meet the requirements of various applications.

OPERATING PRESSURE
up to 25 bar(g)

FREE GAS DELIVERY
up to 6.000 Nm3/h

ADSORBED POWER
up to 700 kW

REFERENCES

UVG 132

Germany

Screw biogas compressor for upgrading located in Germany. Designed for classified Atex Zone 2 for outdoor installation. It is air cooled and completed with fine filtration, temperature control, heat recovery, electro-pneumatic bypass valve and controlled by PLC. The compressor is equipped with silencers (maximum noise level: 65 dB(A) at 10 meters).
VIEW MORE

UVG 132

USA

Screw biogas compressor for upgrading located in USA. Designed in compliance with ASME and UL standards (Class 1 Division 2) for outdoor installation. It is air cooled and equipped with temperature control, bleed valve for depressurization to vent and suction gas filter with automatic condensate drainer.
VIEW MORE

BVG 700

Brazil

Screw biogas compressor for upgrading located in Brazil. Designed in compliance with standards for the Brazilian market (INMETRO and NR10-12-13-17 standards) for indoor installation. It is water-cooled and completed with fine filtration, temperature control, electropneumatic by-pass system, and controlled by PLC.
VIEW MORE

UVG 315

Italy

Screw biogas compressor for upgrading located in Italy. Designed for classified Atex Zone 2 for outdoor installation. It is air cooled and completed with fine filtration, temperature control, heat recovery, electro-pneumatic bypass valve and controlled by PLC. The compressor is equipped with silencer (maximum noise level: 75 dB(A) at 1 meter).
VIEW MORE

UVG 160

Brazil

Two screw biogas compressors for upgrading located in Brazil. Designed in compliance with standards for the Brazilian market (INMETRO and NR10-12-13-17 standards) for outdoor installation. They are air-cooled and equipped with fine filtration, temperature control, electropneumatic by-pass system, and controlled by PLC.
VIEW MORE

Model UVG 200

USA

Screw biogas compressor for upgrading located in USA. Designed in compliance with north american standards, suitable for outdoor installation, air-cooled, completed with electro-pneumatic by-pass system and controlled by PLC.
VIEW MORE

UVG 22

France

Screw compressor for COâ‚‚ located in France. Designed for non-hazardous area for outdoor installation. It is air cooled and completed with fine filtration, electrical cabinet in the compressor skid, fully electrical by-pass system and controlled by PLC. The compressor is equipped with silencers (maximum noise level: 74 dB(A) at 1 meter).
VIEW MORE

UVG 160

USA

Screw biogas compressor for upgrading located in USA. Designed in compliance with ASME and UL standards (Class 1 Division 2) for outdoor installation. It is air cooled and completed with fine filtration, temperature control, electro-pneumatic bypass valve and controlled by PLC.
VIEW MORE

ADI115-22

Czech Republic

Single stage reciprocating compressor for biomethane installed in Czech Republic. Designed for classified Atex Zone 2 for outdoor installation. It is air cooled and completed with electro-pneumatic by-pass system, fine filtration and controlled by PLC.
VIEW MORE

ADI115-30

Netherlands

Double stage reciprocating compressor installed in the Netherlands. Designed for classified Atex Zone 2 for outdoor installation. It is water cooled and completed with bleed valve for depressurization to vent, electro-pneumatic proportional bypass valve and controlled by PLC.
VIEW MORE
