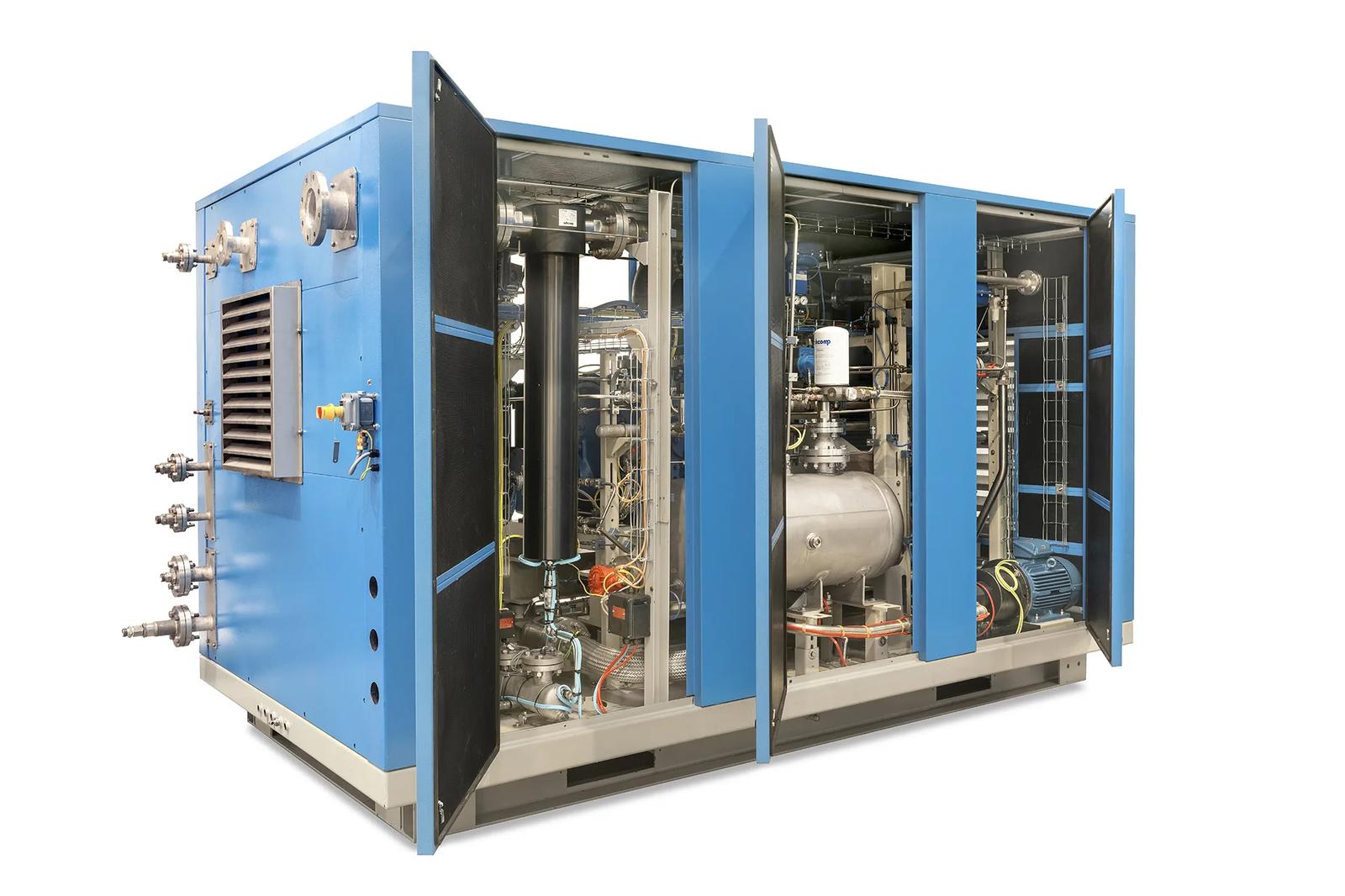

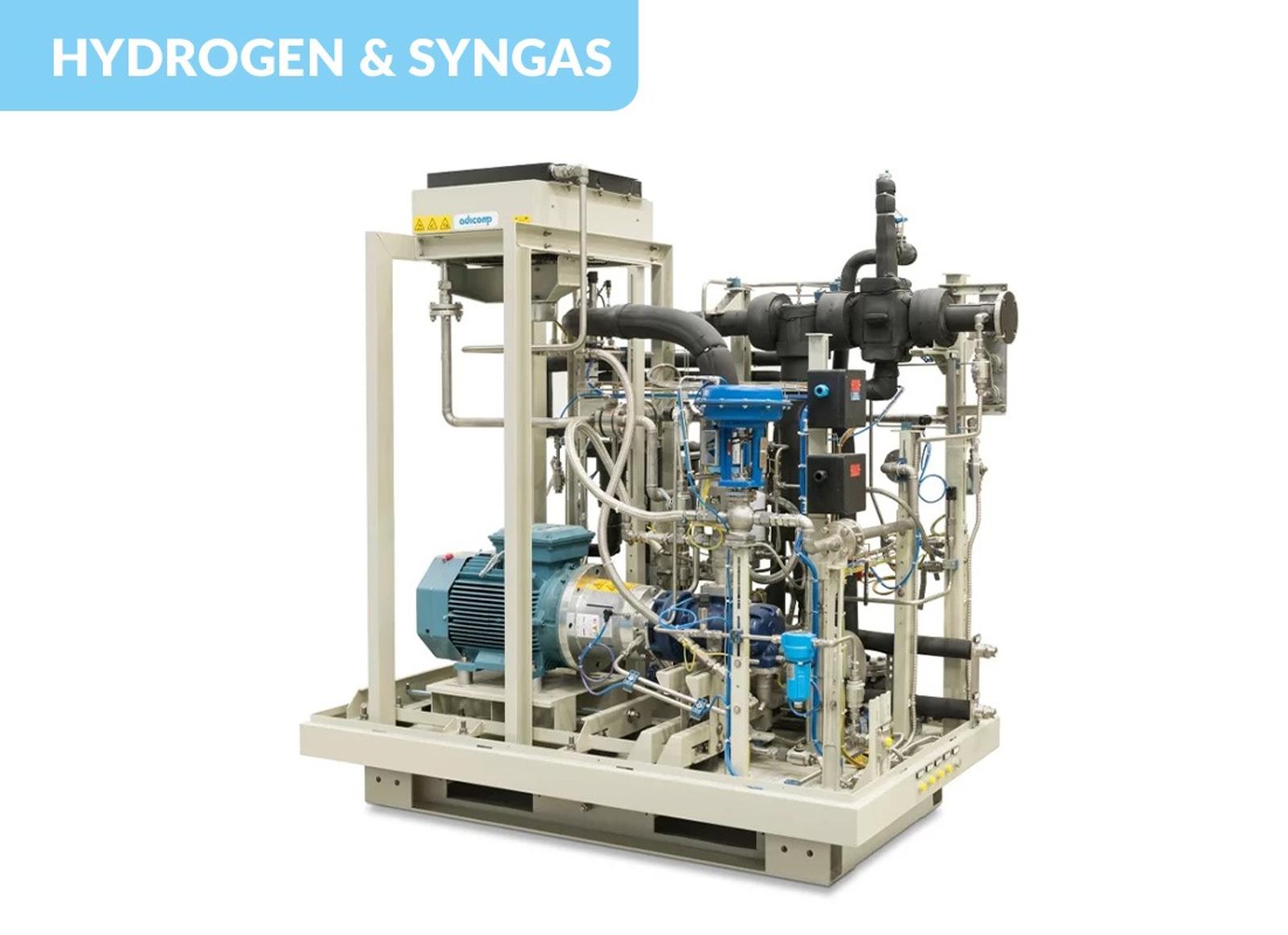

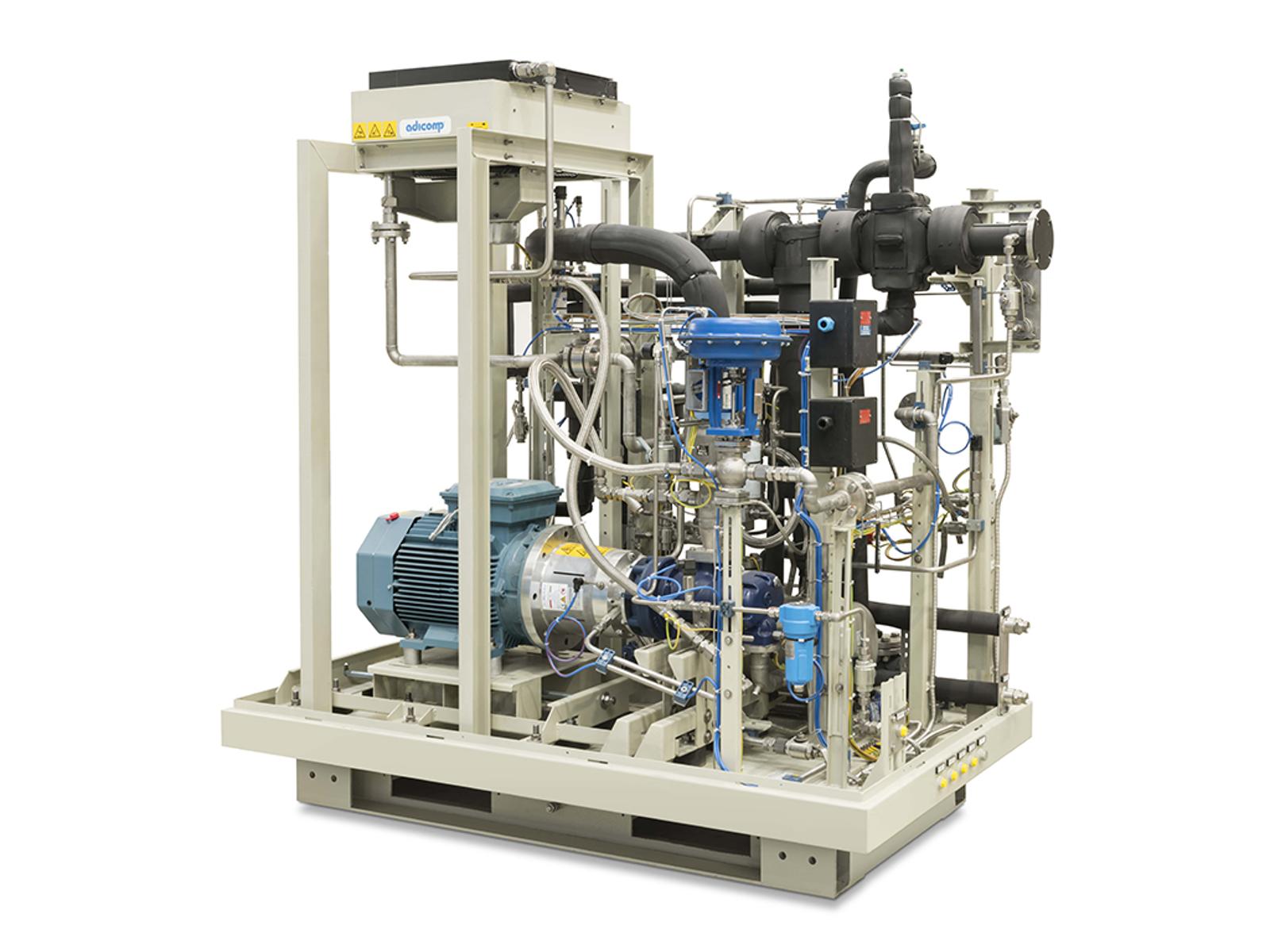

Compressor for Hydrogen - HVG Series

This compressor series is specifically designed for hydrogen and syngas applications. It increases the inlet gas pressure while ensuring efficiency, safety, and adaptability for a reliable and customized process.

Key parameters:

Inlet pressure: up to 8 bar(g)

Operating pressure: up to 25 bar(g)

Free gas delivery: up to 3,000 Nm³/h

Absorbed power: up to 400 kW

This compressor series is specifically designed for hydrogen and syngas applications. Their role is to increase the inlet gas pressure while ensuring efficiency, safety, and adaptability for a reliable and customized process.

Membranes technology
Pressure swing adsorption
Turbines feeding

The gas is drawn through a filter that removes particles and oil vapors, then passes through a suction valve. Components in contact with the gas are made of stainless steel and protected against aggressive contaminants.
During compression, oil is injected into the compression chamber to perform three main functions: lubrication, sealing, and heat absorption.
The oil circulates in a closed loop with a reservoir tank, is pressurized to pass through a radiator, then filtered and sent back to the compression chamber to ensure optimal performance.
The gas, separated from the oil via a cartridge and passing through a minimum pressure/non-return valve, goes through a heat exchanger and can undergo further treatment before leaving the system, according to customer requirements.
An advanced system automatically manages compressor pressure and speed based on availability or demand, optimizing unit operation.

INLET PRESSURE	OPERATING PRESSURE	FREE GAS DELIVERY	ADSORBED POWER
Up to 8 bar(g)	Up to 25 bar(g)	Up to 3000 Nm3/h	Up to 400 kW

EU

Classification of hazardous areas: ATEX Zone II
Pressure vessel code compliance: PED
Electrical Code Compliance: ISO 60079
Certified manufactoring organization: ISO 9001:2015 – ISO 14001:2015 – ISO 45001:2018

US

Hazardous Area Classification: Class 1, Div 2 as defined per NEC, NFPA70
Pressure Vessel Code Compliance: ASME
Electrical Code Compliance: UL/Control panels and assemblies
Certified manufactoring organization: ISO 9001:2015 – ISO 14001:2015 – ISO 45001:2018
UL 508A, Standard for Industrial Control Panels
UL 698A, Standard for Industrial Control Panels Relating to Hazardous (Classified) Locations
NFPA 70 National Electric Code
ASME B31.3 – Process Pipes.

CA

Hazardous Area Classification: Class 1, Div 2 as defined per NEC, NFPA70
Pressure Vessel Code Compliance: ASME -CRN
Electrical Code Compliance: UL/Control panels and assemblies
Certified manufactoring organization: ISO 9001:2015 – ISO 14001:2015 – ISO 45001:2018
UL 508A, Standard for Industrial Control Panels
UL 698A, Standard for Industrial Control Panels Relating to Hazardous (Classified) Locations
NFPA 70 National Electric Code
ASME B31.3 – Process Pipes.

BR

Classification of hazardous areas: ATEX Zone II
Pressure Vessel Code Compliance: ASME – NR13
Electrical code compliance: ISO 60079 – NR10 (Electrical panels and assemblies)
Certified manufactoring organization: ISO 9001:2015 – ISO 14001:2015 – ISO 45001:2018
ASME B31.3 – Process Pipes.

IN

Hazardous Area Classification: ATEX Zone II (HEAVY)
Pressure Vessel Code Compliance: ASME
Electrical code compliance: ISO 60079 (Electrical panels and assemblies)
Certified manufactoring organization: ISO 9001:2015 – ISO 14001:2015 – ISO 45001:2018
ASME B31.3 – Process Pipes.
